Krautkramer USM GO+
With great pleasure we offer the new generation of portable ultrasonic flaw detectors USM GO produced by GE Sensing & Inspection Technologies.
Traditionally USM GO will be produced in three versions: Basic, DAC, Advanced.
USM GO Series overview
USM Go Basic
- Flaw detection in the best ergonomic way
- New ultra-compact housing enables one-hand operation
- Light weight less than 1 kg
- The flaw detector is fitted with state-of-the-art electronics with a large LCD Display
- Fully ambidextrous control panel allows the instrument to be used equally well by left-handed and right-handed people
- A rubber moulded casing is shock and vibration proof which allows working in the hardest environmental conditions
USM GO DAC
- Combines all advantages of Basic version + additional advantages
- DAC to measure according to EN 1713, ASME and JIS Standards
- Inspection of welds
- Alarms and DAC correction
- Color Leg Function
- Multi-curve DAC with curves correction
- TCG operation, 120 dB/µs for highly attenuative materials
USM GO Advanced
- All advantages of described versions + additional advantages
- DGS for flaw sizing in forgings and in welds according to EN 1712
- Adjustable PRF allows the USM Go to be used at low PRF to inspect forgings for inclusions and porosity without any “ghost” echoes and just as easily find application in weld inspection at high PRF when fast and regular scanning movement is required to optimise inspection cycles.
USM GO advantages overview
What does it give?
Ergonomics
- Minimal housing size allows working in difficult-to-access areas
- Optimal display size facilitates improved readability and echo separation
- Secure one-hand operation
- Light weight of the instrument (845 g) promotes ease of work
- Integrated stand allows comfortable placing of the instrument on the surface
- Flaw detector can be used with regular camera and industrial tripods
- Main controls are falling under the thumb
- Comfortable operation by left-handed or right-handed people
Productivity
- Proven GUI navigation system simplifies the operation
- Intuitive interface: there is no need to reference operating manual to find function descriptions
- Innovative joystick enable one-hand operation and fast and accurate adjustments
- AutoCal, Auto 80, and “Gate synchronization” functions help to optimize and facilitate operation
Robust housing
- Subject to wear parts of the housing are rubber protected
- Immersion test according to IP 67, dust proof/dripping water proof according to P67 / IEC529
- Housing shock resistance (514.5 Procedure II; 516.5 Procedure IV)
- Vibration test (Mil-Std-810F, 514.5 – 5 Procedure I, Annex С)
Connectivity
- Easy downloading of reports and settings
- USB connection
- Standard SD-card up to 2 GB
- Report generation in JPG and BMP formats
- Onboard data logger allows measurement saving in linear or grid file structures
- Instrument software can be updated on demand
Detectability
- Unique patented Phantom echo indicator option (noise identification)
Application:
- Inspection of welds and parent metal
- Inspection of forgings
- Inspection of rail
- Inspection of composite materials
| Frequency range: | 0.2 MHz - 20 MHz |
|---|---|
| Calibration depth: | max. 14016 mm in steel (longitudinal waves) |
| Gain: | Dynamic range of 110 dB, with 0.2 dB step |
| Damping: | 50 or 1000 Ohms |
| PRF: | Automatically optimized between 15 - 2000 Hz |
| Rectification: | Full-wave, positive half-wave, negative half-wave, RF display |
| Distance Measurement: | Peak or flank |
| Memory: | 2 GB SD-card, 2Гб, Jpeg reports |
| LCD Display: | Active area 108 mm х 64.8 mm, pixel resolution 800 х 480 dot |
| Connectors: | Two Lemo-00 for probes connection , micro USB connector, SD card slot |
| Operating Temperature Range: | 0C to 55С |
| Storage Temperature Range: | -20С to +60С |
| Battery operation: | 5.5 hours, Universal AC charger (100-240V, 50-60 Hz) |

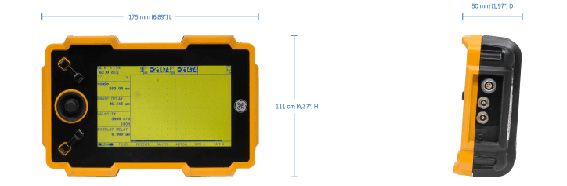

| Size: | 175 mm х 111 mm х 50 mm |
| Weight: | 845g (battery included) |
